Home Oxygen Concentrator



Model

JAY-5AW

Flow Rate

0-5L/min

Oxygen Concentration

93% (±3%)

Outlet Pressure

0.04-0.07Mpa

Sound Level

≤ 40db

Power

AC230V, 50Hz; AC220V/110V (±10%), 50/60Hz (±1Hz)

Power Consumption

≤ 300W

Weight

16kgs

Size

350x280x540mm

LCD display

Switch times, operating pressure, present working time, accumulated
working time, preset time from 10mins to 40hours

Alarm

Power failure alarm; high/low pressure alarm

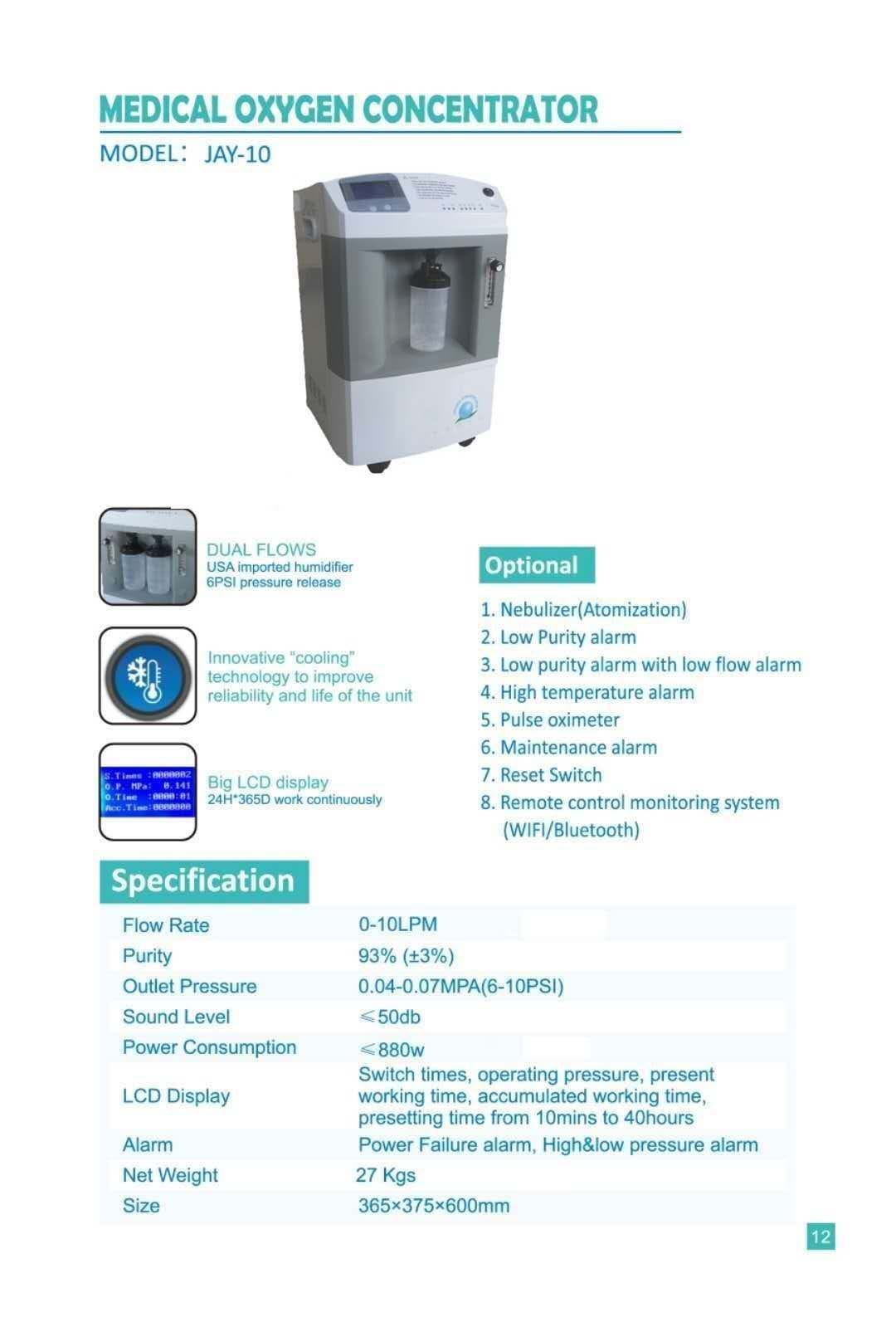

JAY 10 - Home Oxygen Concentrator (1-10LPM) with nebulising port


Flow rate 1-9L/min, 93%±3%, 10L/min, 90%±2%
Outlet Pressure (Mpa) 0.04-0.07
Sound Level ≤50db
Power AC230V, 50Hz(AC220V/110V±10%, 50/60±1Hz are available)
Power Consumption ≤550W
LCD display Swith times, Operating pressure, Present Working Time,,Accumulating Time, presetting Time from 10mins to 40hours
Alarm Power failure alarm, High&Low pressure alarm
Net Weight 26Kgs
Size (mm) 365×375×600mm



Home Oxygen Concentrator Dual Flow ( 1-5LPM)


Flow Rate 0-5LPM/0-8LPM /0-10LPM
Purity 93% (3%)
Outlet Pressure 0.04-0.07MPA(6-10PSI)
Sound Level <50db
Power Consumption <550w/<550w/<880w
LCD Display Switch times,operating pressure,present working time,accumulated working time,preseting time from 10 mins to 40 hours
Alarm Power failure alarm, High&Low pressure alarm
Net Weight 26 kgs /26 kgs/ 27kgs
Wheels Removevable 4 wheels
Size 365/375/600mm

Home Oxygen Concentrator (1-5LPM)


Model Name DO2-5E
Oxygen Flow 5L/PM
Oxygen Purity 93+/-3
Oulet Pressure 130Kpa-150Kpa
Flow meter Single Flow
Time Counter Yes
Alarm Power failure alarm, High&Low pressure alarm
Net Weight 13.5kg
Wheels Removevable 4 wheels
Power supply 220-240V/50Hz
Power Consumption 300W
Power cable European/US/UK
Electrical safety Protection class ll, type B
Filters provided Inlet filter,bacterial filter and Coarse filter
